2006 G550 | SN 5112

• One US Owner Since New
• Enrolled on HAPP
• Micro Quick Access Recorder (ASC 71)
• Honeywell MCS-7000 SATCOM
• Securaplane 500 Aircraft Security System
• Honeywell LSZ-860 Lightning Detector
• Securaplane with Three External Cameras (NO CAMERAS, JUST
MOTION)
• Emergency Vision Assurance System (EVAS)
• Enhanced Navigation (ASC 84C)
• ADS-B Out Version 2 (ASC 105B)

ASC 911A – Enhanced Navigation

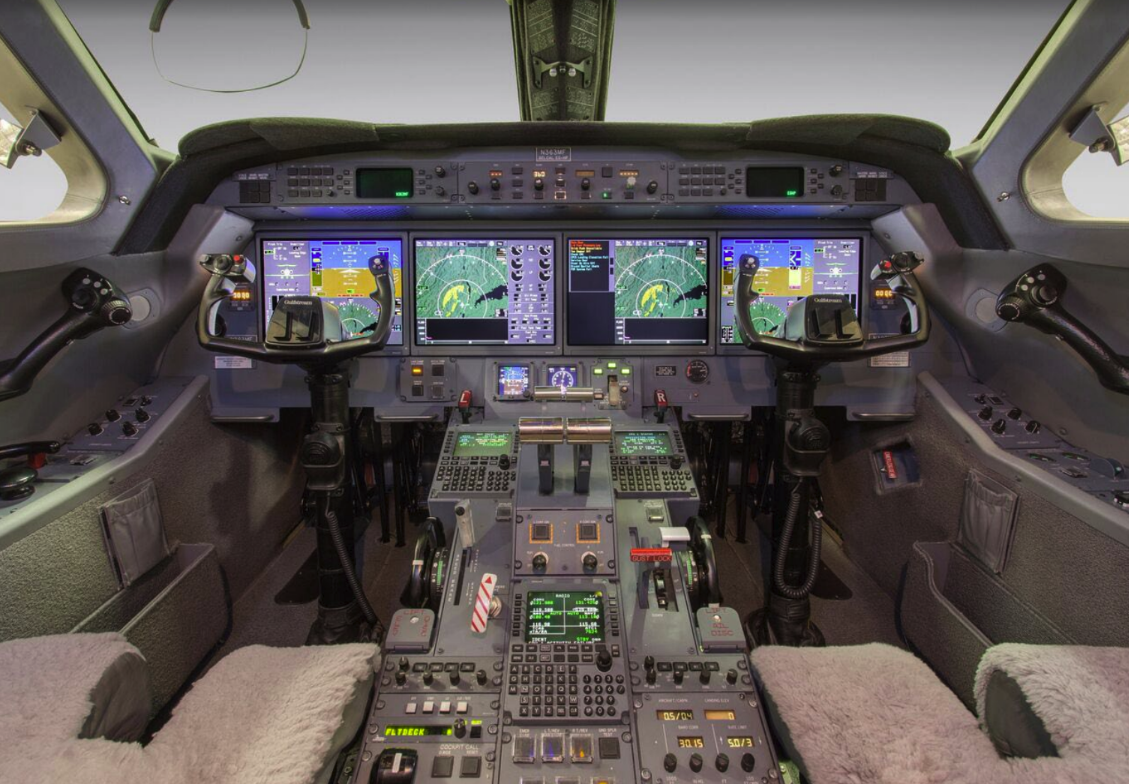

Gulfstream PlaneView TM (Honeywell Primus Epic®)
AFCS 3:Axis Automatic Flight Control System with Auto-Throttle and Dual Cursor Control Devices
EFIS: Four (4) Honeywell DU 1310 14.1” AMLCD Units with INAV®
STDBY: EBDI and L3/Goodrich GH-3100 EHSI
VGS: Gulfstream Enhanced Vision SystemTM (Head-Up Display + Infrared Camera and Kollsman EVS Processor)
FMS: Triple Honeywell Primus Epic Flight Management System with Software Version NZ7.1.2 and WAAS-LPV (Enhanced Navigation)
CDU: Triple Honeywell MC-850 Multifunction Control Display Units
DATALINK: Honeywell Communications Management Function with SAT Link and FANS 1/A – CPDLC
ADS: Triple Honeywell AZ-200 Air Data Modules
VHF COM: Triple Honeywell VHF Modules
HF COM: Dual Rockwell Collins HF-9000 HF COMM System with SELCAL
AUDIO: Triple Honeywell AV-900 Audio Control Panels
SATCOM 1: Honeywell MCS-7000 Inmarsat Satellite Communications System
GPS: Dual Honeywell WAAS GPS Sensors
LRNAV: Triple Honeywell LASEREF® V Micro Inertial Reference System
NAV: Triple Honeywell NAV Modules
DME: Dual HoneywellDM-850DME Modules
ADF: Dual Honeywell DF-855 ADF Modules
RADAR: Honeywell Primus® 880 Weather Radar System
RADALT: Dual Honeywell Radio Altimeters
TAWS: Dual Honeywell EGPWM Modules(Class A TAWS)
ACAS: Honeywell TCAS 2000 TCAS II with Change 7.1
XPNDR: Dual Honeywell ADS-BOut Transponder Modules(DO-260B)
FDR: L-3 Digital Flight Data Recorder (25 Hr.)
CVR: L-3 Cockpit Voice Recorder
ELT: Artex C406-N406 MHz ELT with Navigation Interface

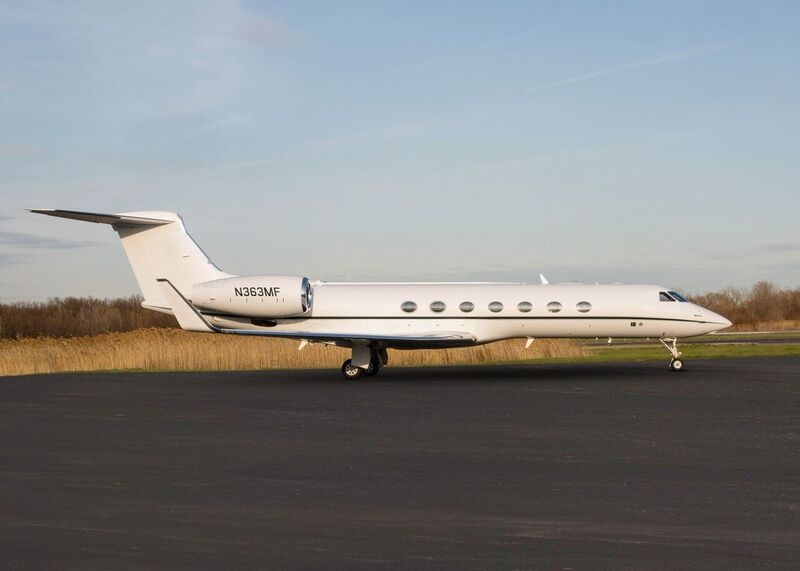

Base – White – with two jade mist green
stripes and one star silver stripe

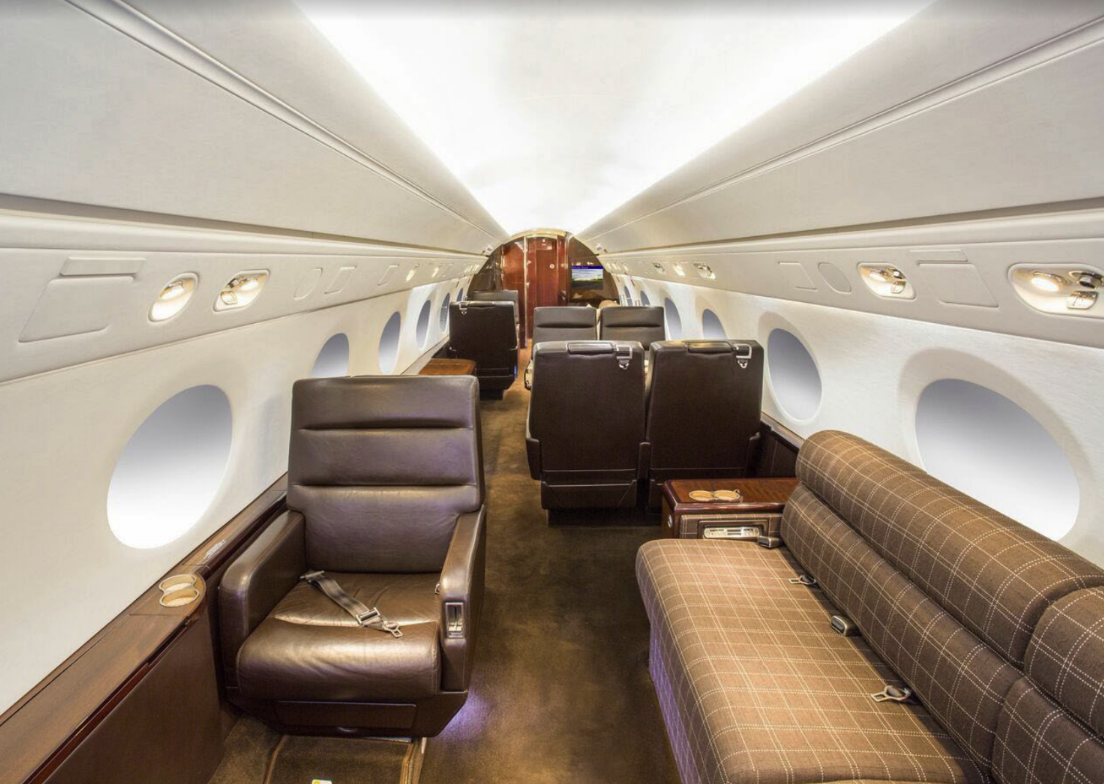

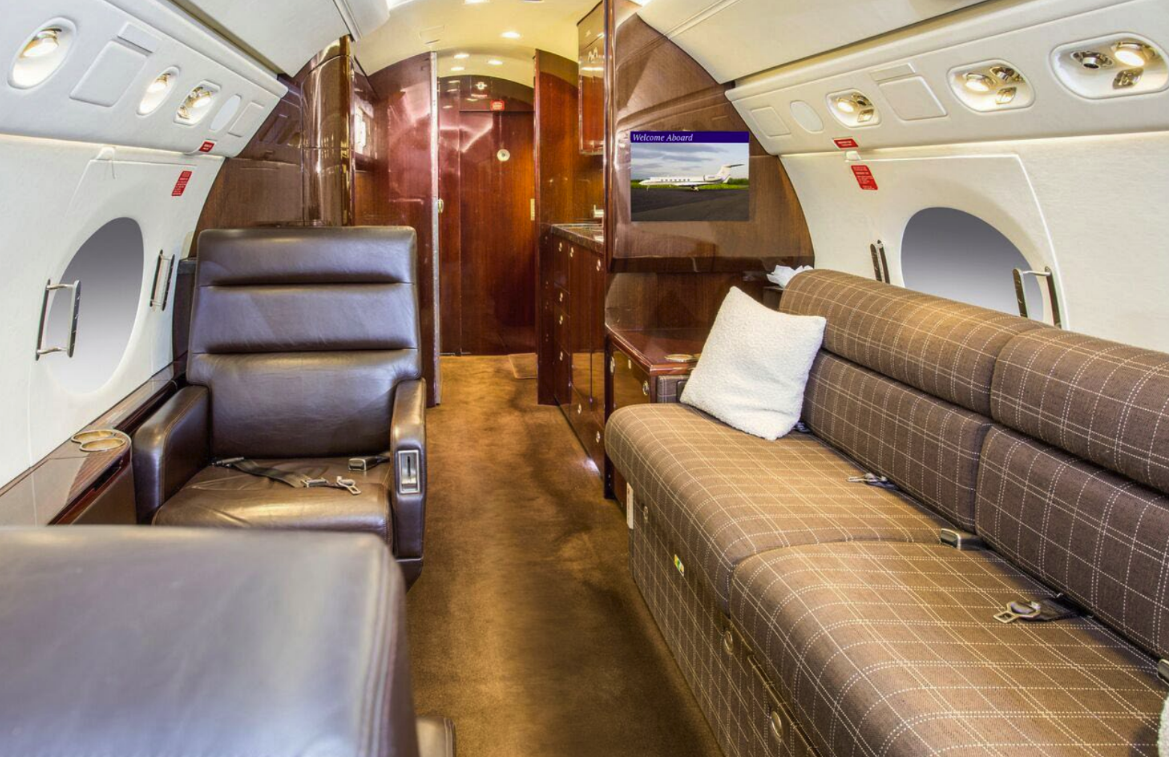

GAC Savannah Interior:
Cabin Layout: 16 Passengers
Fwd Cabin: Two (2) Single Seats Opposing (4) Place Berthable Divan
Mid Cabin: Four (4) Place Conference Grouping with Opposing Credenza
Aft Cabin: Two (2) Single Seats with Opposing Four (4) Place Berthable Divan
Galley and Lavatory: Aft Galley with High Temp Oven, Microwave, Coffee Maker, Ice
Chest and Refrigerator, Aft Lavatory with External Service
Vacuum/Lav.
FWD Crew Lavatory Vacuum.
Jump Seat
